Remote Area Lighting Systems

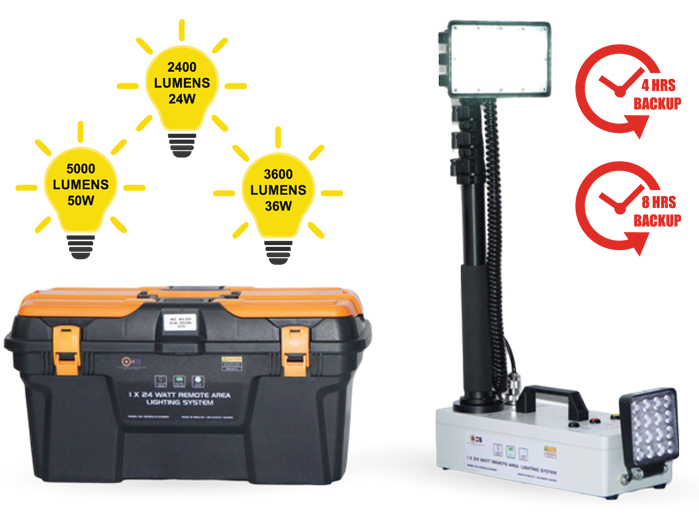

1X24W, 1X36W & 1X50W Remote Area Lighting Systems (Single Head)

Remote Area Lighting Systems Single Head

Model : OESRALS1X24W 4/8H - 1X24WATT
Model : OESRALS1X36W 4/8H - 1X36WATT
Model : OESRALS1X50W 4/8H – 1X50WATT
Min Order Qty. : 5 Nos.

Designed for on-the-go lighting needs with a specific focus, this system offers a more compact solution compared to larger portable lighting systems and other dual-head Remote Area Lighting Systems. Available in three models—1X24 Watt, 1X36 Watt, and 1X50 Watt versions, it can also be customized to meet specific requirements. With three dimming modes (Low, Medium, and High) and backup options of 4 or 8 hours, making this system more versatile. Equipped with an optional remote control accessory, it allows for operations from a distance of up to 100 meters. The light mast extends up to 6 feet from ground level. A 4-level battery indicator keeps users informed about battery levels. Oering 360° rotation in the horizontal plane and 90° in the vertical plane, it provides flexibility in directing light as per user requirement. The system relies on a powerful BIS certified lithium battery for uninterrupted illumination. Furthermore, the system holds an IP65 rating, ensuring usability in all weather conditions. It also accommodates the use of a cordless (optional) hand lamp from OES Make. For a comprehensive list of technical specifications suitable for tender requests, please contact us via email.

Key Features :

  • Available in 24W, 36W & 50W Versions
  • IP65 All Weather Use
  • 4 Hrs, 8 Hrs – 2 Models
  • Powerful Directional Light Focus
  • Compact Design
  • Front Search Light
  • Powerful BIS certified Lithium Battery
  • Portable Rugged Design
  • 3 Operating Modes (Low, Mid, High)
  • Constant Light Output from Start To End
  • Remote Control Option* ( Addl. Accessory)
  • Optional LCD Display
  • Adjustable Light Mast upto 6 Feet
  • Operating Temperature Range : 0°C To 55°C.
  • Operating Humidity Range : 10% RH To 100% RH
  • Special Temperature -20°C To +55°C Model Available For Use In Snow Areas (Army)
  • Sturdy Carry Case
  • Made In India
  • 1 Year Warranty
Remote Area Lighting Systems Single Head


Technical Specifications :

Parameter 1X24 W RALS 1X36 W RALS 1X50 W RALS
Led Power 24 Watts 36 Watts 50 Watts
Total Lumens 2400 3600 5000
Run Time / Backup Time 4 Hrs / 8 Hrs 4 Hrs / 8 Hrs 4 Hrs / 8 Hrs
Battery Type & Voltage Li-Ion, 24V Li-Ion, 24V Li-Ion, 24V
Battery Capacity 4 Hrs – 6 AH
8 Hrs – 12 AH		 4 Hrs – 8 AH
8 Hrs – 16 AH		 4 Hrs – 12 AH
8 Hrs – 24 AH
Battery Protections Battery Low,
Over Charging,
Short Circuit Protection		 Battery Low,
Over Charging,
Short Circuit Protection		 Battery Low,
Over Charging,
Short Circuit Protection
Ingress Protection IP65 IP65 IP65
Charge Time 4 / 6 Hrs 4 / 6 Hrs 4 / 6 Hrs
Input Charging Voltage 220VAC, 50Hz 220VAC, 50Hz 220VAC, 50Hz
Mast Height 6 Feet, Adjustable 6 Feet, Adjustable 6 Feet, Adjustable
Beam Spread Wide or Narrow (Option) Wide or Narrow (Option) Wide or Narrow (Option)
Front Search Light Yes Yes Yes
Country of Origin Made In India Made In India Made In India
Warranty 1 Year 1 Year 1 Year
Model No. OESRALS1X24W4/8H OESRALS1X36W4/8H OESRALS1X50W4/8H

Note : No Retail Enquiries Please, Check Minimum Order Qty. Before Sending Enquiry
