Remote Area Lighting Systems

4X50W Remote Area Lighting System with 4 & 8 Hours Backup Models

Om Energy Savers

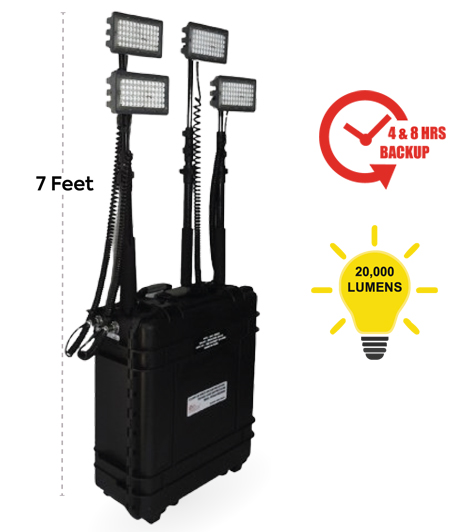

200 Watt Remote Area Lighting System With 4 & 8 Hours Backup

MODEL : OESRALS4X50W8H – 8 Hours
MODEL : OESRALS4X50W4H – 4 Hours
Min Order Qty. : 2 Nos.

This system is ideal for compact and portable lighting needs that require illumination in a single direction or four dierent directions. This system is more compact compared to other portable lighting systems because it eliminates the need for a separate external tripod stand. Instead, the lights are mounted on telescopic masts that are attached to the sturdy carry case itself. The height of the lights can be adjusted up to 7 feet. The system includes 4 powerful lights, each providing 5000 lumens, totaling 20,000 lumens. It offers three operating modes: Low, Medium, and High. A four-stage battery level indicator provides information on the remaining battery levels. Additionally, a USB charger is included to facilitate the charging of mobile phones or any other 5 VDC appliance with USB charging capability. The higher end model includes an LCD Display for additional system information.

Key Features :

  • 4 Hrs / 8 Hrs Uniterrupted Backup (2 Models)
  • 4 Light Heads of 50 Watt Each, Total = 200 Watts / 20,000 Lumens
  • Rechargeable System
  • Powerful Lithium Battery
  • Portable and Easy to Assemble
  • 3 Operating Modes : Low, Medium, High
  • Constant Light Output
  • Remote Control Option* (Additional Accessory)
  • Extendable Upto 7 Feet (Incl. Cast Height)
  • Sturdy Telescopic Masts
  • Hand Lamp Option Available (Additional Accessory)
  • Made In India
  • 1 Year Warranty

Additional Optional Accessories Available with System. (Addl. Cost) :

  • Charge from vehicle charger
  • RF Remote Control

Technical Specifications :

  • 4X50 Watts SMD Cluster / Power LED, Total = 200 Watts
  • IP65 System, All Weather Use
  • LCD Display for Battery Status, Charging Status, Lumens, Balance Backup Hrs.
  • Backup : 4 Hrs/ 8 Hrs (2 Models)
  • Charging, Battery Level & Battery Low Indicators / LCD Display
  • Coverage Area 2500 – 3000 Sq.Ft.
  • 6 – 8 Hrs Charging Time
  • Sturdy Carry Case with Wheels
  • Light Radiation Angle – 60o To 100o Approx.
  • Light Heads Rotatable in 360o Degrees In Horizontal Plane
  • Flexible & Retractable Cable
  • Battery Protections provided for Over Charge, Deep Discharge & Short Circuit
  • System Operating Voltage : 24VDC
  • Mast Height : Extendable Up to 7 Feet (Incl. Case Height)
  • Operating Temperature Range (STD Model) : 0°C To 55°C
  • Operating Humidity Range : 10% RH To 100% RH
  • Input Charging Voltage : 220V AC, 50Hz.
  • System Weight : 35 Kgs Approx. (8 Hrs. Model)
  • Dimensions in Packed Condition : 70 X 60 X 30 CM
Note : No Retail Enquiries Please, Check Minimum Order Qty. Before Sending Enquiry
