LUMINOPOLE (With Shell) - 60,000 Lumens, 14 Ft - Tower Light With 180° To 360° Light Adjustment

Om Energy Savers

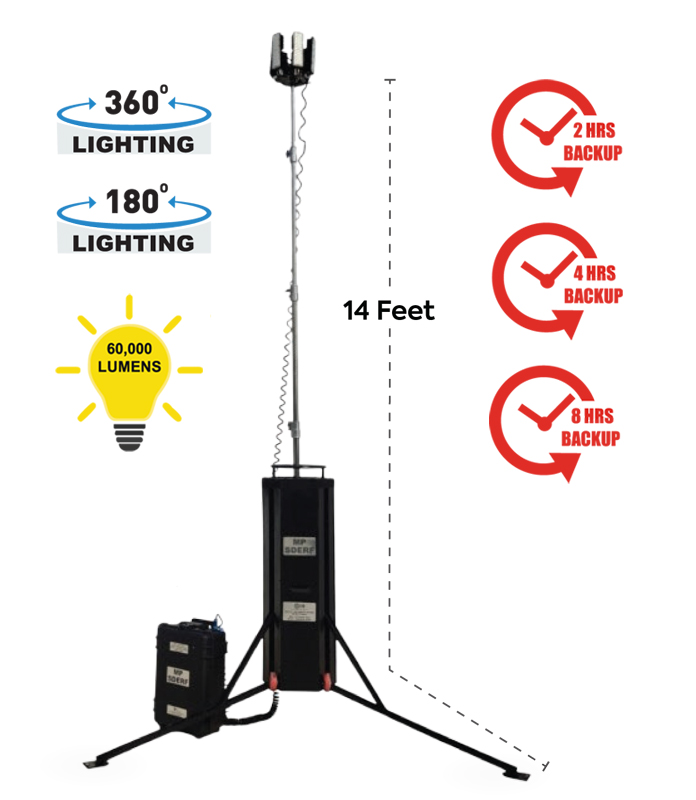

14 Ft Tower Light With 180° To 360° Light Adjustment

MODEL : OESTLUMIP360W4HPNEU
Min Order Qty. : 1 Nos.

The innovative Telescopic Mast system is a robust and versatile lighting solution designed for a wide range of applications, including disaster relief, law enforcement, defense operations, municipal use, public gatherings, and significant events like the Kumbh Mela. Standing at an adjustable height of up to 14 feet and constructed from durable aluminum / stainless steel, this system ensures a substantial height advantage for optimal illumination. It is equipped with six powerful LED lights, each rated at 60 watts, collectively emitting an impressive 60,000 lumens. The LED lights boast a flexible adjustment range from 180 degrees to a full 360 degrees, allowing customizable lighting coverage from a focused 180-degree span to a comprehensive 360-degree area, effectively illuminating up to 6,000 square meters.

This state-of-the-art system is designed for rapid deployment, capable of being fully operational in just a few minutes, making it ideal for emergency and time-sensitive situations. It can be powered by either a battery pack or a generator, ensuring versatility in various operational contexts. The mast is engineered to withstand extreme temperatures ranging from -20°C to +70°C and can endure wind speeds up to 50 KMPH, making it suitable for use in a wide range of environmental conditions. It also features advanced battery protection mechanisms, including low battery indication, overcharge protection, deep discharge protection, and short circuit protection, ensuring safety and reliability. With IP65 certification, this telescopic mast system is designed for all-weather use, guaranteeing performance in even the most challenging conditions. Spare parts availability further ensures its longevity and continuous readiness. This system is not just a lighting solution but a dependable ally for various critical operations, enhancing visibility, safety, and operational efficiency

Key Features :

  • 2/4/8 Hrs Backup
  • 60,000 Lumens !!!
  • Rechargeable Battery + Generator Operation
  • Powerful Lithium Battery
  • 180° – 360° Ooeration
  • Generator Capacity : 800 To 1000VA
  • 3 Operating Modes
  • Constant Light Output
  • 14 Ft Automatic / Manual Mast
  • Remote Control Option
14 Ft Tower Light With 180° To 360° Light Adjustment

Technical Specifications :

Light Source Led
Led Type SMD / Power Led
Number of Led Light Heads 6 Nos
Cable Flexible Retractable Cable for Lights
Adjustable Light Heads Yes (Vertical To Slant)
Lumens Per Led Fixture 10,000 Lumens Per Light
Total Lumens 60,000 Lumens
Total Wattage 360 Wattage
Run Time 2 Hrs / 4 Hrs / 8 Hrs Options
COnstant Lumen System Provided With + / - 10% Variation
Number Of Modes Low-Mid-High - 60,000 Lumens
Light Angle Spread 180° To 360° Adjustable
Telescopic Tripod Operation Manual
Mast Material Stainless Steel
Telescopic Tripod / Mast Height 4.2 Meters / 14 Feet
Charging Input AC Voltage 220V AC To 270V AC, 6A
Mini Inverter Provided for Laptop / Satellite Phone Charging (Optional)
Generator Operating Module Provided With Light Output Stabilizer
Remote Controlled Provided (Only In Battery ModeMODE)
Operation Temp Range -20°C TO +70°C
Operating Humidity Range 10% RH To 99% RH.
Wind Speed Sustenance 60 Kmph
System Voltage 24VDC
Battery Type Lithium, BIS Certified
Battery Level Indicator 4 Level Battery Level Indicator with Alarm
USB Out Yes, 5VDC X 2 Ports
Scitches & Connectors Water Proof (IP65)
Ingress Protection IP65

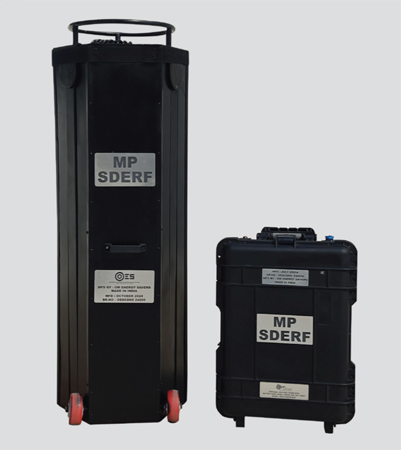

Trolley with Wheels For Tripod, Lamp Carry Case + Battery Carry Case
Weight < 50 < 70 <100 Kg Depending On Model (Battery Capacity)
Certification BIS For Battery System is NABL + CE Certified
Warranty 1 Year

Note : For more detailed technical specifications for tenders please email us.
