Portable Rechargeable Flood Lights & Lighting Systems

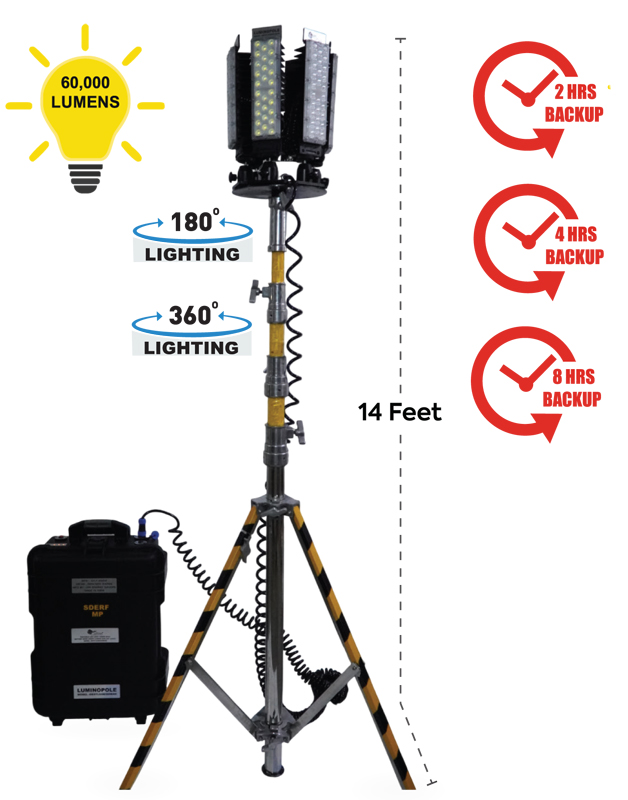

LUMINOPOLE - 60,000 Lumens, 14 Ft - Tower Light With 180° To 360° Light Adjustment
The innovative Telescopic Mast system is a robust and versatile lighting solution designed for a wide range of applications, including disaster relief, law enforcement, defense operations, municipal use, public gatherings, and significant events like the Kumbh Mela.
MODEL : OESTLS4M360W4H
Min Order Qty. : 1 Nos.
Standing at an adjustable height of up to 14 feet and tripod constructed from durable stainless steel, this system ensures a substantial height advantage for optimal illumination. It is equipped with six powerful LED lights, each rated at 60 watts, collectively emitting an impressive 60,000 lumens. The LED lights boast a flexible adjustment range from 180 degrees to a full 360 degrees, allowing customizable lighting coverage from a focused 180-degree span to a comprehensive 360-degree area, effectively illuminating up to 6,000 square meters.
This state-of-the-art system is designed for rapid deployment, capable of being fully operational in just a few minutes, making it ideal for emergency and time-sensitive situations. It can be powered by either a battery pack or a generator, ensuring versatility in various operational contexts. The mast is engineered to withstand extreme temperatures ranging from -20°C to +70°C and can endure wind speeds up to 60 KMPH, making it suitable for use in a wide range of environmental conditions. It also features advanced battery protection mechanisms, including low battery indication, overcharge protection, deep discharge protection, and short circuit protection, ensuring safety and reliability.

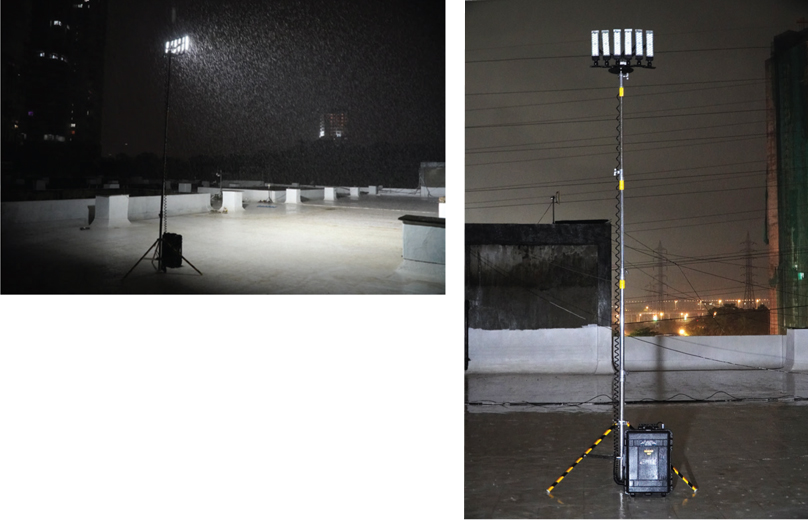

With IP65 certification, this telescopic mast system is designed for all-weather use, guaranteeing performance in even the most challenging conditions. Spare parts availability further ensures its longevity and continuous readiness. This system is not just a lighting solution but a dependable ally for various critical operations, enhancing visibility, safety, and operational efficiency.
Key Features :
- 2/4/8 Hrs Backup
- 60,000 Lumens !!!
- Rechargeable Battery + Generator Operation
- Powerful Lithium Battery
- 180° – 360° Ooeration
- 3 Operating Modes
- Constant Light Output
- 14 Ft Mast
- Remote Control
Technical Specifications :
Light Source |
Led |
Led Type |
SMD / Power Led |
Number of Led Light Heads |
6 Nos |
Cable |
Flexible Retractable Cable for Lights |
Adjustable Light Heads |
Yes (Vertical To Slant) |
Lumens Per Led Fixture |
10,000 Lumens Per Light |
Total Lumens |
60,000 Lumens |
Total Wattage |
360 Wattage |
Run Time |
2 Hrs / 4 Hrs / 8 Hrs Options |
COnstant Lumen System |
Provided With + / - 10% Variation |
Number Of Modes |
Low-Mid-High - 60,000 Lumens |
Light Angle Spread |
180° To 360° Adjustable |
Telescopic Tripod Operation |
Manual |
Mast Material |
Stainless Steel |
Telescopic Tripod / Mast Height |
4.2 Meters / 14 Feet |
Charging Input AC Voltage |
220V AC To 270V AC, 6A |
Mini Inverter |
Provided for Laptop / Satellite Phone Charging (Optional) |
Generator Operating Module |
Provided With Light Output Stabilizer |
Remote Controlled |
Provided (Only In Battery ModeMODE) |
Operation Temp Range |
-20°C TO +70°C |
Operating Humidity Range |
10% RH To 99% RH. |
Wind Speed Sustenance |
60 Kmph |
System Voltage |
24VDC |
Battery Type |
Lithium, BIS Certified |
Battery Level Indicator |
4 Level Battery Level Indicator with Alarm |
USB Out |
Yes, 5VDC X 2 Ports |
Scitches & Connectors |
Water Proof (IP65) |
Ingress Protection |
IP65 |
Trolley with Wheels For Tripod, Lamp Carry Case + Battery Carry Case |
Weight |
< 50 < 70 <100 Kg Depending On Model (Battery Capacity) |
Certification |
BIS For Battery System is NABL + CE Certified |
Warranty |
1 Year |
Note : For more detailed technical specifications for tenders please email us.
